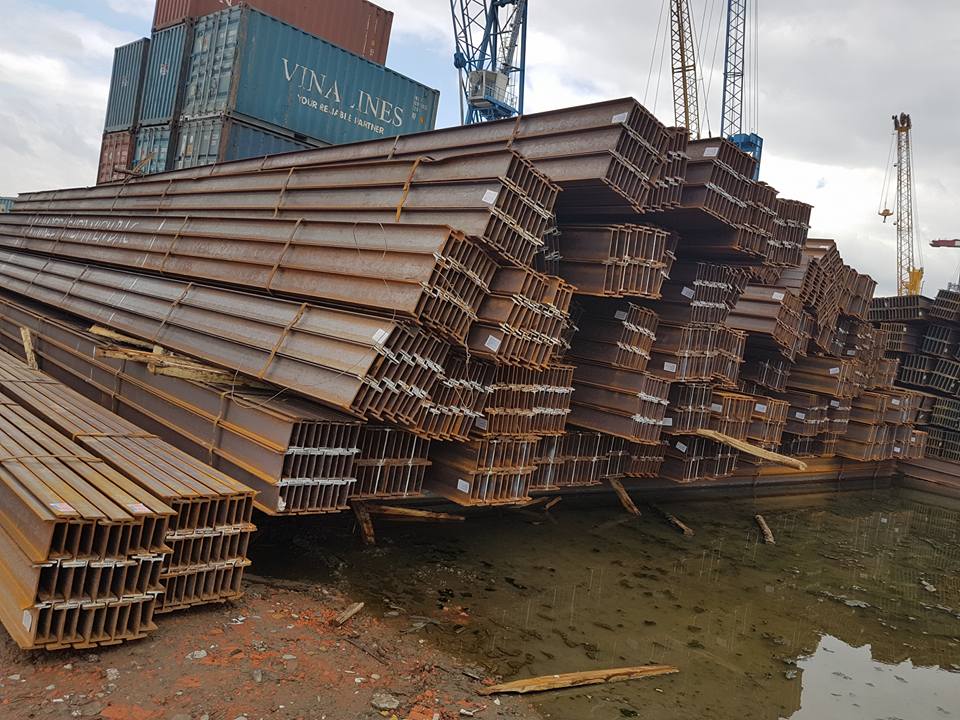

Thép hình chữ H

Mác thép: Q195 – Q235B – Q345B – SS400 – A36 – S235JR – St37-2 – SM400A – SM400B – SM490A – SM490B

Tiêu chuẩn: GB/T700 – GB/T1591 – JIS G3101 – JIS G3106 – ASTM – EN 10025 – DIN 17100 – KS D3503 – KS D3515 – KS D3502…

Xuất xứ: Nhật Bản, Hàn Quốc, Trung Quốc, Việt Nam….

Ứng dụng: Nhà xưởng, kết cấu, xây dựng nhà xưởng, kết cấu nhà tiền chế, nâng và vận chuyển máy, làm cọc cho nền nóng nhà xưởng

Mác thép: Q195 – Q235B – Q345B – SS400 – A36 – S235JR – St37-2 – SM400A – SM400B – SM490A – SM490B

Tiêu Chuẩn GB/T700 – GB/T1591 – JIS G3101 – JIS G3106 – ASTM – EN 10025 – DIN 17100 – KS D3503 – KS D3515 – KS D3502…

Xuất xứ: Hàn Quốc, Nhật Bản, Trung Quốc…

Bảng quy cách kích thước

Kích thước chuẩn (mm)				Diện tích mặt cắt ngang (cm2)	Đơn trọng (kg/m)	Momen quán tính (cm4)		Bán kính quán tính (cm)		Modun kháng uốn mặt cắt (cm3)
HxB	t1	t2	r	A	W	Ix	Iy	ix	iy	Zx	Zy
H100x100x6x8	6	8	10	21.9	17.2	383	134	4.18	2.47	76.5	26.7
H125x125x6.5×9	6.5	9	10	30.31	23.8	847	293	5.29	3.11	136	47
H150x75x5x7	5	7	8	17.85	14	666	49.5	6.11	1.66	88.8	13.2
H148x100x6x9	6	9	11	26.84	21.1	1,020	151	6.17	2.37	138	30.1
H150x150x7x10	7	10	11	40.14	31.5	1,640	563	6.39	3.75	219	75.1
H175x175x8x11	8	11	12	51.2	40.4	2,880	984	7.5	4.4	330	112
H198x99x4.5×7	4.5	7	11	23.18	18.2	1,580	114	8.26	2.21	160	23
H200x100x5.5×8	5.5	8	11	27.16	21.3	1,840	134	8.24	2.22	184	26.8
H194x150x6x9	6	9	13	39.01	30.6	2,690	507	8.3	3.61	277	67.6
H200x200x8x12	8	12	13	63.53	49.9	4,720	1,600	8.62	5.02	472	160
H200x204x12x12	12	12	13	71.5	56.2	4,980	1,700	8.35	4.88	498	167
H208x202x10x16	10	16	13	83.69	65.7	6,530	2,200	8.83	5.13	628	218
H248x124x5x8	5	8	12	32.68	25.7	3,540	255	10.4	2.79	285	41.1
H250x125x6x9	6	9	12	37.66	29.6	4,050	294	10.4	2.79	324	47
H244x175x7x11	7	11	16	56.2	44.1	6,120	984	10.4	4.18	502	113
H244x252x11x11	11	11	16	82.06	64.4	8,790	2,940	10.3	5.98	720	233
H248X249x8x13	8	13	16	84.7	66.5	9,930	3,350	10.8	6.29	801	269
H250x250x9x14	9	14	16	92.18	72.4	10,800	3,650	10.8	6.29	867	292
H250x255x15x14	14	14	16	104.7	82.2	11,500	3,880	10.5	6.09	919	304
H298x149x6x8	6	8	13	40.8	32	6,320	442	12.4	3.29	424	59.3
H300x150x7x9	7	9	13	46.78	36.7	7,210	508	12.4	3.29	481	67.7
H294X200x8x12	8	12	18	72.38	56.8	11,300	1,600	12.5	4.71	771	160
H298X201x9x14	9	14	18	83.36	65.4	13,300	1,900	12.6	4.77	893	189
H294X302x12x12	12	12	18	107.7	84.5	16,900	5,520	12.5	7.16	1,150	365
H298X299x9x14	9	14	18	110.8	87	18,800	6,240	13	7.5	1,270	417
H300x300x10x15	10	15	18	119.8	94	20,400	6,750	13.1	7.51	1,360	450
H300x305x15x15	15	15	18	134.8	106	21,500	7,100	12.6	7.26	1,440	466
H304X301x11x17	11	17	18	134.8	106	23,400	7,730	13.2	7.57	1,540	514
H310x305x15x20	15	20	18	165.3	130	28,150	9,460	13.2	7.6	1,810	620
H310x310x20x20	20	20	18	180.8	142	29,390	9,940	12.8	7.5	1,890	642
H346x174x6x9	6	9	14	52.68	41.4	11,100	792	14.5	3.88	641	91
H350x175x7x11	7	11	14	63.14	49.6	13,600	984	14.7	3.95	775	112
H354x176x8x13	8	13	14	73.68	57.8	16,100	1,180	14.8	4.01	909	134
H336x249x8x12	8	12	20	88.15	69.2	18,500	3,090	14.5	5.92	1,100	248
H340x250x9x14	9	14	20	101.5	79.7	21,700	3,650	14.6	6	1,280	292
H338x351x13x13	13	13	20	135.3	106	28,200	9,380	14.4	8.33	1,670	534
H344x348x10x16	10	16	20	146	115	33,300	11,200	15.1	8.78	1,940	646
H344x354x16x16	16	16	20	166.6	131	35,300	11,800	14.6	8.43	2,050	669
H350x350x12x19	12	19	20	173.9	137	40,300	13,600	15.2	8.84	2,300	776
H350x357x19x19	19	19	20	191.4	156	42,800	14,400	14.7	8.53	2,450	809
H396x199x7x11	7	11	16	72.16	56.6	20,000	1,450	16.7	4.48	1,010	145
H400x200x8x13	8	13	16	84.12	66	23,700	1,740	16.8	4.54	1,190	174
H404x201x9x15	9	15	16	96.16	75.5	27,500	2,030	16.9	4.6	1,360	202
H386x299x9x14	9	14	22	120.1	94.3	33,700	6,240	16.7	7.81	1,740	418
H390x300x10x16	10	16	22	136	107	38,700	7,210	16.9	7.28	1,980	481
H388x402x15x15	15	15	22	178.5	140	49,000	16,300	16.6	9.54	2,520	809
H394x398x11x18	11	18	22	186.8	147	56,100	18,900	17.3	10.1	2,850	951
H394x405x18x18	18	18	22	214.4	168	59,700	20,000	16.7	9.7	3,030	985
H400x400x13x21	13	21	22	218.7	172	66,600	22,400	17.5	10.1	3,330	1,120
H400x408x21x21	21	21	22	250.7	197	70,900	23,800	16.8	9.75	3,540	1,170
H406x403x16x24	16	24	22	254.9	200	78,000	26,200	17.5	10.1	3,840	1,300
H414x405x18x28	18	28	22	295.4	232	92,800	31,000	17.7	10.2	4,480	1,530
H428x407	20	35	22	360.7	283	119,000	39,400	18.2	10.4	5,570	1,930
H458x417x30x50	30	50	22	528.6	415	187,000	60,500	18.8	10.7	8,170	2,900
H498x432x45x70	45	70	22	770.1	605	298,000	94,000	19.7	11.1	12,000	4,370
H446x199x8x12	8	12	18	84.3	66.2	28,700	1,580	18.5	4.33	1,290	159
H450x200x9x14	9	14	18	96.76	76	33,500	1,870	18.6	4.4	1,490	187
H434x299x10x15	10	15	24	135	106	46,800	6,690	18.6	7.04	2,160	448
H440x300x11x18	11	18	24	157.4	124	56,100	8,110	18.9	7.18	2,550	541
H496x199	9	14	20	101.3	79.5	41,900	1,840	20.3	4.27	1,690	185
H500x200x10x16	10	16	20	114.2	89.6	47,800	2,140	20.5	4.33	1,910	214
H506x201x11x19	11	19	20	131.3	103	56,500	2,580	20.7	4.443	2,230	254
H482x300x11x15	11	15	26	145.5	114	60,400	6,760	20.4	6.82	2,500	451
H488x300x11x18	11	18	26	163.5	128	71,000	8,110	20.8	7.04	2,910	541
H596x199x10x15	10	15	22	120.5	94.6	68,700	1,980	23.9	4.05	2,310	199
H600x200x11x17	11	17	22	134.4	106	77,600	2,280	24	4.12	2,590	228
H606x201x12x20	12	20	22	152.5	120	90,400	2,720	24.3	4.22	2,980	271
H612x202	13	23	22	170.7	134	103,000	3,180	24.6	4.31	3,380	314
H582x300x12x17	12	17	28	174.5	137	103,000	7,670	24.3	6.63	3,530	511
H588x300x12x20	12	20	28	192.5	151	118,000	9,020	24.8	6.85	4,020	601
H594x302x14x23	14	23	28	222.4	175	137,000	10,600	24.9	6.9	4,620	701
H692x300x13x20	13	20	28	211.5	166	172,000	9,020	28.6	6.53	4,980	602
H700x300x13x24	13	24	28	235.5	185	201,000	10,800	29.3	6.78	5,760	722
H708x302x15x28	15	28	28	273.6	215	237,000	12,900	29.4	6.86	6,700	853
H792x300x14x22	14	22	28	243.4	191	254,000	9,930	32.3	6.39	6,410	662
H800x300x14x26	14	26	28	267.4	210	292,000	11,700	33	6.62	7,290	782
H808x302x16x30	16	30	28	307.6	241	339,000	13,800	33.2	6.7	8,400	915
H890x299x15x23	15	23	28	270.9	213	345,000	10,300	35.7	6.16	7,760	688
H900x300x16x28	16	28	28	309.8	243	411,000	12,600	36.4	6.39	9,140	843
H912x302x18x34	18	34	28	364	286	498,000	15,700	37	6.56	10,900	1,040
H918x303x19x27	19	37	28	391.3	307	542,178	17,222	37.2	6.63	11,800	1,140
